Explore the Products

Shop

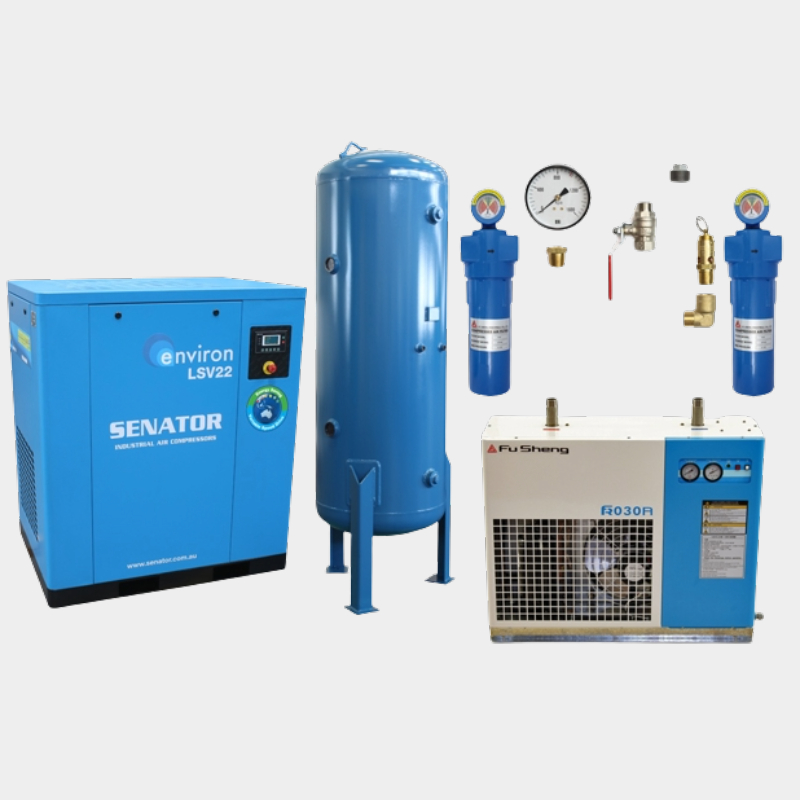

Senator LSV22 Professional Package

$25,067.00

Air Compressor SE LSV22-8
Motor Power 22 kW (30 hp)
Free Air Delivery 1.25 – 3.58 m3/min
Working Pressure 8 bar (116 psi)
Vertical Air Receiver 530 Litres c/w Accessory Kit

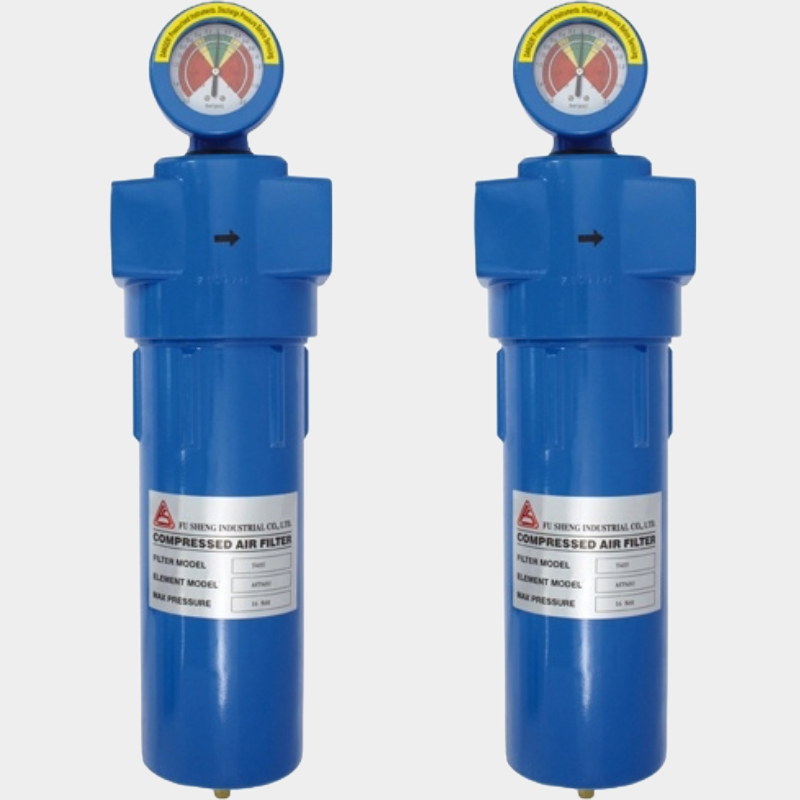

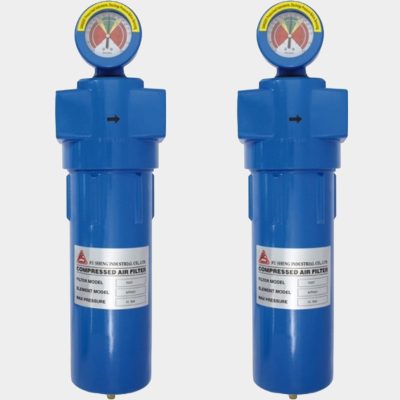

Pre Filter T40U, 1 Micron Coalescing

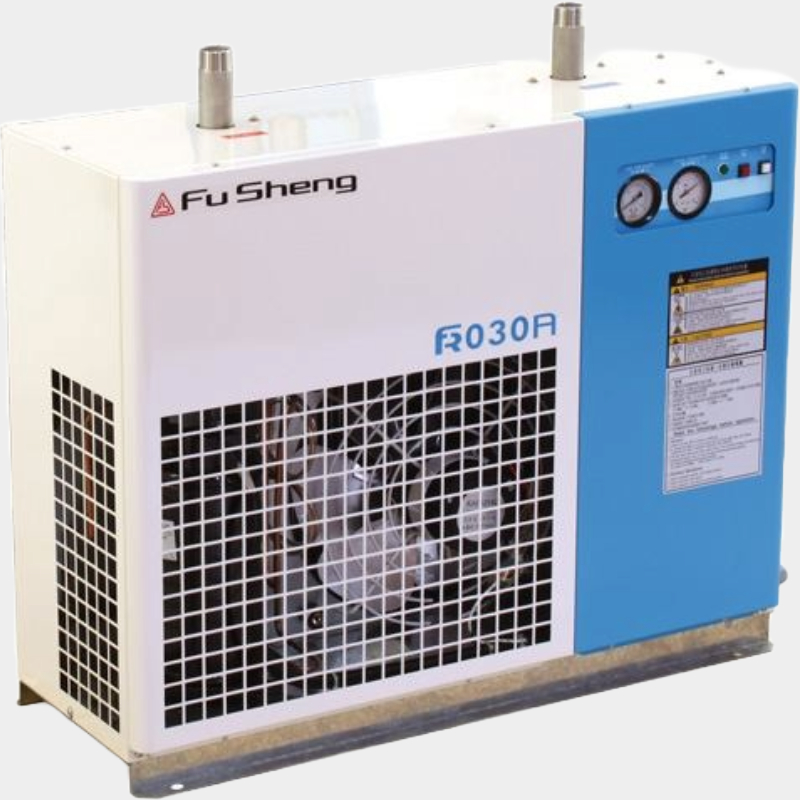

Refrigerant Dryer FR030A
Post Filter T40H, 0.01 Micron Coalescing
Product Code SE LSV22-8 PKG

Quick info

Description

There is a choice of three fundamental package types that satisfy the requirements of most industrial compressed air systems.

Professional Package

This is the recommended minimum standard comprising an oil-lubricated compressor, receiver tank, refrigerant dryer and two stages of filtration. The clean, dry compressed air is suitable for pneumatic tools, air powered machinery, abrasive blasting, powder coating and spray painting.

Ultimate Package

For special applications requiring clean, odourless and oil-free compressed air, this package comprises an oil- free compressor, receiver tank, refrigerant dryer and four stages of filtration. Typical applications include dental and medical facilities, food and beverage processing, and chemical and pharmaceutical manufacturing.

Basic Package

This type should only be considered in those instances where there is no requirement for filtration or drying

of the compressed air, such as general cleaning and blowing down, air powered transfer pumping and waste liquid aeration.

Convenience

A single point of contact for selection, purchase and whole-of-life support of the compressed air system.

Safety

All of the equipment complies with Australian Workplace Health and Safety Regulations for industrial use.

Performance

The individual equipment items have been performance matched to ensure correct system function.

Value

By sourcing the equipment direct and exclusively from the manufacturers, we’re able to offer these packages at very competitive prices nationwide.

Flexibility

The packages can be readily enhanced with additional or upgraded components to suit any special application requirements.

Support

Australia-wide dealer network offering sales, installation, service and genuine spare parts backup.

Confidence

24-month (Airmac, FS-Curtis and Fusheng) or 12-month (Puma and Senator) parts and labour warranty.

Specifications

Package Product Code Senator LSV Series Compressor Vertical
Air
Receiver
Receiver
Accessory
Kit
Fusheng
1 Micron
Coalescing
Filter
Fusheng
Refrigerant
Dryer
Fusheng
0.01 Micron
Coalescing
Filter
Model Free Air Delivery Motor Power
m3/min cfm kW hp
SE LSV18-8 PKG LSV18-8 1.08 – 3.08 38 – 109 18.5 25 V300-1215 V300-1215-K T40U FR030A T40H
SE LSV22-8 PKG LSV22-8 1.25 – 3.58 44 – 127 22 30 V530-1215 V530-1215-K T40U FR030A T40H
SE LSV30-8 PKG LSV30-8 1.74 – 4.96 61 – 175 30 40 V530-1215 V530-1215-K T40U FR050A T40H
SE LSV37-8 PKG LSV37-8 2.23 – 6.38 79 – 225 37 50 V820-1220 V820-1220-K T60U FR050A T60H
SE LSV45-8 PKG LSV45-8 2.51 – 7.18 89 – 254 45 60 V820-1220 V820-1220-K T60U FR075A T60H
SE LSV55-8 PKG LSV55-8 3.35 – 9.58 118 – 338 55 75 V1240-1100 V1240-1100-K T75U FR075A T75H
SE LSV75-8 PKG LSV75-8 4.32 – 12.33 152 – 435 75 100 V1240-1100 V1240-1100-K T125U FR100A T125H

Download

The smart energy saving solution for industrial applications with fluctuating compressed air demand up to 12.33 m³/min. Each package comprises a Senator LSV Series variable speed compressor, vertical air receiver, refrigerant dryer and two stages of filtration. Clean, dry compressed air at the lowest overall cost.

Download Brochure
