Description

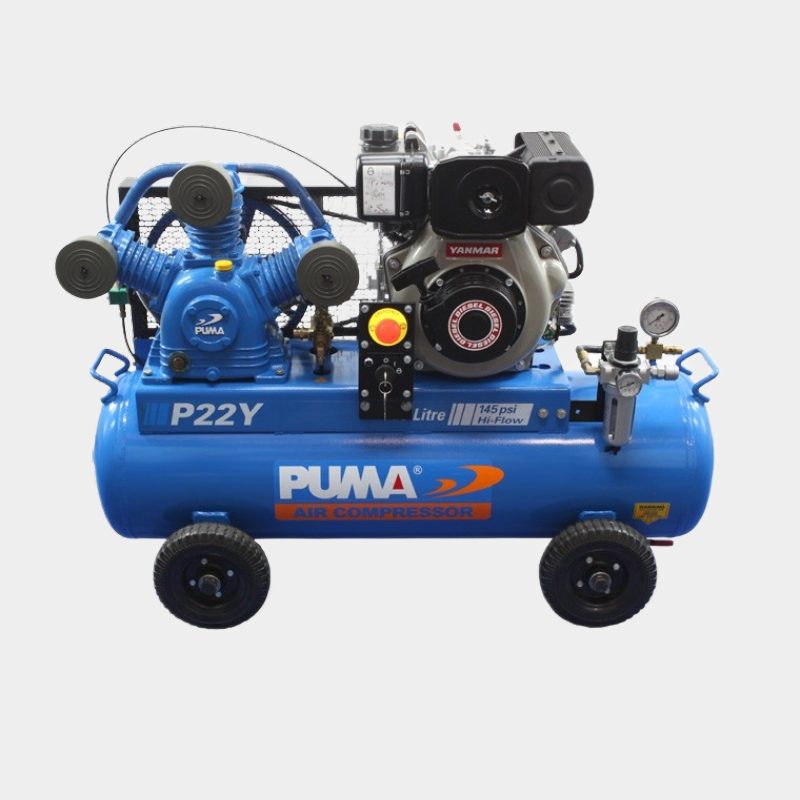

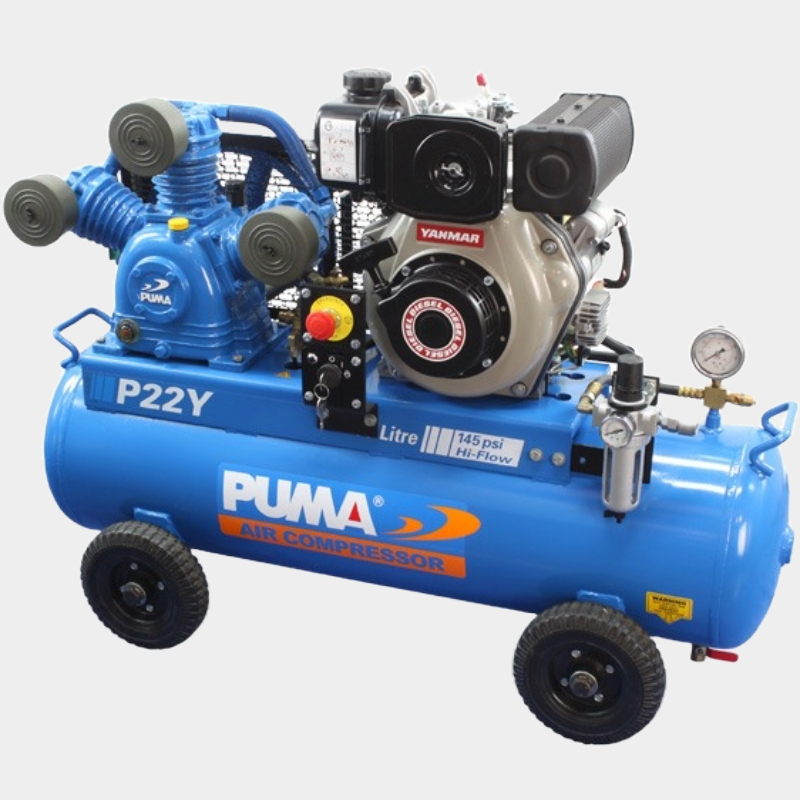

Puma Hi-Flow Pump
Puma’s exclusive long-stroke pump design delivers very high flow-rates at low pump speeds. Its full cast iron construction is built tough for reliability and long service life.
Yanmar Diesel Engine
Yanmar’s direct injection technology achieves high power output with low fuel consumption. Auto-idle throttle control regulates the engine speed to match compressed air demand.
Electric Start and E-Stop
Choose the convenience of an electric start model and avoid the strain of rope pull starting. Each one is fitted with a fail-safe emergency stop button for Mine Spec compliance.
12 Volt Battery Kit Option
Make your electric start compressor independent of its host service truck by specifying this option. The kit includes a maintenance free battery, insulated leads and custom engineered bracket.
Filter Regulator (P18Y & P22Y)
The 5 micron filter effectively removes dirt and water from the compressed air stream while the regulator provides accurate pressure control. A Nitto-style coupling is fitted to the air outlet port.
Puncture Proof Tyres (P18Y & P22Y)
You’ll never be let down by a puncture with these solid rubber tyres mounted on heavy-duty steel wheels. The wide tread profile and ball bearing hub also allow for easy all-terrain handling.
Specifications
|
Model |
Pump Displacement |
Free Air Delivery |
Maximum Pressure |
Pump |
Yanmar Engine |
E-Stop |
Tank Volume |
Outlet Size |
Noise Level |
Dimensions (cm) & Weight |
| L/min [cfm] * |
L/min [cfm] * |
kPa [psi] |
Model [rpm] |
Model |
Starter |
Fitted |
Litres |
BSP |
dB(A) ^ |
L |
W |
H |
kg |
| P18Y |
430 [15.2] |
350 [12.4] |
1,000 [145] |
PG31 [1,080] |
L48
4.7 hp |
Rope Pull |
No |
60 |
1/4” |
83 |
113 |
45 |
84 |
100 |
| P18Y ES |
430 [15.2] |
350 [12.4] |
1,000 [145] |
PG31 [1,080] |
L48
4.7 hp |
Electric ∆ |
Yes |
60 |
1/4” |
83 |
113 |
45 |
84 |
105 |
| P22Y |
540 [19.1] |
440 [15.5] |
1,000 [145] |
PG41 |
[900] |
L48
4.7 hp |
Rope Pull |
No |
75 |
1/4” |
83 |
113 |
45 |
84 |
119 |
| P22Y ES |
540 [19.1] |
440 [15.5] |
1,000 [145] |
PG41 |
[900] |
L48
4.7 hp |
Electric ∆ |
Yes |
75 |
1/4” |
83 |
113 |
45 |
84 |
124 |
| P30Y ES |
805 [28.4] |
690 [24.4] |
1,000 [145] |
PG56 |
[940] |
L70
6.7 hp |
Electric ∆ |
Yes |
125 |
1/2” |
87 |
141 |
45 |
100 |
204 |
| P40Y ES |
1,085 [38.3] |
805 [28.4] |
1,000 [145] |
PG76 |
[900] |
L100
10 hp |
Electric ∆ |
Yes |
140 |
3/4” |
89 |
156 |
46 |
103 |
240 |
* Measured per AS 4637-2006.
∆ Electric start engines will not run unless connected to a 12 Volt battery (not supplied).
^ Measured @ 7 m per AS 2221.1-1979.
Download
Puma air compressors are now available in Australia powered by Yanmar diesel engines for use in critical safety environments. Mine Spec versions are available with emergency stop fuel shutoff. Outstanding free-air-delivery and durability are both assured by Puma’s innovative long-stroke, cast iron compressor pumps.
